Piping Division

Piping Department of Behbood Farayand Group is proud to provide our valuable clients with almost all applicable elements in pipelines and pipe networks including but not limited to: Pipes, Fittings, Flanges, Spectacle blinds, Spades, Spacers and Drip rings in a wide range of Working pressure/ANSI Class, Construction and Material to convey diversity of media for sour and corrosive, acidic and normal services as below:

1.Pipes: Line Pipes, Process Pipes, Drilling Pipes
2.Tubes: Heat Exchanger and Condenser Tubes
3.Flanges: Weld Neck, Slip on, Blind, Lap Joint, Threaded, etc
4.Special Flanges: Anchor Flanges, Long Weld Necks, Nipolet Flange, Weldolet Flange, Orifice Flange, etc.
5.Fitting: Socket Weld, Threaded (NPT, BSP, etc.)
6.Spectacle Blinds, Spades, Spacer and Drip Rings.
7.Profile Jobs as per Customer Requirements.

**Product List**
Product	Type	Range	Grade
Pipes	C.S Seamless/Welded (ERW/SAW)	¼”‐24” (Seamless) 4”‐24”(ERW) 24”‐100”(SAW)	A53/A106/API5LGR.B/X42/X52/X60 A53/API5LGR.B/X46/X52/X60/X65/X70 A671/A672/ CC60/CC70 etc…
	CS‐Low Temp	Up to 24”	A333 Gr. 6
	Stainless Steel	1/2“-12”(Seamless) 8”‐36”(EFW)	A312/A213/A358/ Gr. 304/304L & 316/316L
	Drilling Pipes	2-3/8" to 6-5/8"	API5D, API5DL, API Spec 7. E-75, X-95, G-105, S-135
Tubes	Heat Exchanger & condenser Tubes	1/4" – 8.625"	Serrated, Solid, Studded
Flanges	CS, High Temp/Low Temp, Stainless Steel	1/4" ‐ 60”	A105/A350 LF2/A694 F52/A694 F60/A694 F65, A182F304/304L & 316/316L
Special Flanges	All Grades	ANSI Flanges (2500 Class) API Flanges (10000 Class)	A105N
Fittings	CS‐ Forged / Reinforced Fittings, CS‐ Wrought‐BW/Alloy	Up to 24”(Seamless) 26”‐ 60” (Welded)	A105 A234 WPB/WPHY 42/52/60/65/70
Fittings	SS‐Forged SS‐Wrought‐BW	Up to 4” Up to 36”	A182 F304/304L/F316/316L A403 Gr‐304/304L & 316/316L
Gaskets	Metallic Spiral Wound	Up to 60”	A182‐304/304L316/316L (Winding & Gasket Rings)
Gaskets	Ring Gasket, (Oval/Octagonal) None‐Metallic, CNAF/Gasket Sheets	Up to 60”	Non‐Asbestos‐Gasket Sheets
Stud Bolts	CS‐High & Low Temp	1/8” ‐ 4”	Bolts A193 B7/B7M A320 L7/L7M/ & Nuts‐A194 2H/2HM

Pipes

Line and Process Pipes

Construction:

Seamless
ERW
SAW
EFW

Material:

Carbon Steel :
A53/A106/API5LGR.B/X42/X52/X60
A53/API5LGR.B/X46/X52/X60/X65/X70
A671/A672/ CC60/CC70 etc…
Stainless Steel:
A312/A213/A358/ Gr. 304/304L & 316/316L and more
Nickel Alloys
Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22, C276

Size Range:

NB 1/4" to NB 100"

Drilling Pipes and Collars

Size Range:

2-3/8" to 6-5/8"

Grades:

E-75, X-95, G-105, S-135

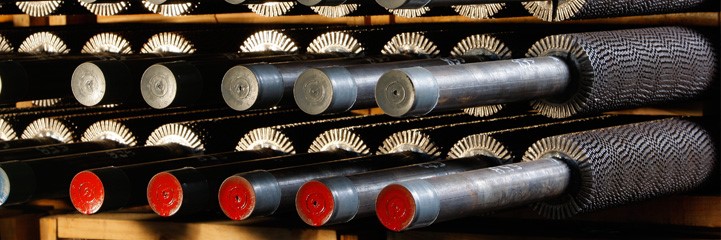

Tubes

Application:

Heat Exchangers
Condensers

Construction:

Solid
Serrated
Fin
Custom spec. and Bend

Size Range:

OD 1/4" to 8.625"

Material:

Carbon Steel
SA / A179, SA/A192, SA/A210 (A-1, C), SA/ A53 (TYPE S SEAMLESS A, B)
SA/A106 (A,B,C), API (J55, N80, L80)
Alloy Steel
SA/A213 - T2, T5, T5b, T5c, T9, T11, T12, T17, T21, T22, T23, T24, T91, T92
SA/A334 - Gr.1, Gr.3, Gr.6, Gr.8, Gr.9, Gr.11
SA/A333 - Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.9, Gr.10, Gr.11
SA/A335 - Grade P1, P2, P5, P5b, P5c, P9, P11, P12, P15, P21, P22, P23
Copper and Copper Alloy
Copper: C1100, C1200, C1220
Copper Nickel: C70600, C71500
Aluminum Brass: C68700
Admiralty Brass: C44300
Brass: C2600, C2700, C2200
Nickel Alloy
N06600, N06625, N06690, N08800, N08825, N04400, N10276
Duplex
S31803, S32205, S32750, S31254

FLANGES

Type of Flanges:

Welding Neck Flange,
Slip on Flange,
Blind Flange,
High Hub Blind Flange,
Socket Weld Flange,
Lap Joint Flange,
Threaded Flange,
Ring Type Joint (RTJ) Flange,
Orifice Flanges

Standards:

ASME/ANSI B16.5
ASME/ANSI B16.47 (Series A & B)
ASME/ANSI B 16.36
DIN: DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S: BS 4504, BS4504, BS1560

Pressure Rating:

# 150 – #2500

Size Range (NB):

1/2" To 80" and also Custom Spec.

Material Grade:

Carbon Steel: ASTM A105, A350 LF2
Alloy Steel: ASTM A182 F1, F5, F9 F11, F22, F91
Stainless Steel: ASTM A182 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L.
Duplex Stainless Steel: UNS S31803, UNS S32750
Nickel Alloys: Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22, C276

**SPECIAL FLANGES**
Orifice Flange	Anchor Flanges
Weldoflange/Nipoflange	Long Weld Neck Flange
Reducing Flange	Expander Flange
Ring joint Flange	Plate Flange
Stub Ends	Swivel Ring Flanges

FITTINGS

Elbows,
Tees (Straight and Reducing)
Couplings
Half Couplings
Caps
Plugs and Bushing
Crosses
Laterals
Street Elbows & Inserts
O’lets.

In Accordance with:

ASME B16.11 / DIN / EN

Material Grade:

Carbon Steel: ASTM A105,A350 LF2
Alloy Steel: ASTM A182 F1, F5, F9 F11, F22, F91
Stainless Steel: ASTM A182 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L.
Duplex Stainless Steel: UNS S31803, UNS S32750
Nickel Alloys: Monel 400 & 500, Inconel 600 & 625, Incoloy 800, 825, Hastelloy C22, C276

Size Range:

1/4" up to 80"

Pressure Rating:

Up to # 9000

Spectacle Blinds, Spades, Spacer and Drip Rings.

Dimensional Standard:

API 590 & ASTM B16.48 or Custom Spec.

Size:

1/4" up to 80" and Custom Spec.

Pressure Rating:

150# to 2500#.

Material Grade:

Stainless Steel: ASTM A182 F304, F304L, F304H, F316, F316L, F316Ti, F310, F310S, F321, F321H, F317, F347, F347H, F904L.
Duplex Stainless Steel: UNS S31803, UNS S32750
Carbon Steel: ASTM A105, A350 LF2, A516 Gr. 60 / 65 / 70
Alloy Steel: ASTM A182 F1, F11, F22, F5, F9
Nickel Alloys: Monel 400 & 500, Inconel 600 & 625, Inconel 800, 825, Hastelloy C22, C27
